Redis
Prerequisite
- Spin up a Redis-Stack Server using Docker
docker run -d --name redis-stack-server -p 6379:6379 redis/redis-stack-server:latest
Setup
- Add a new Redis node on canvas.

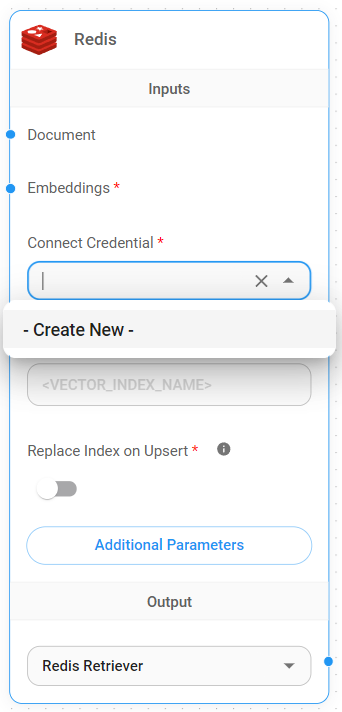

- Create new Redis credential.
 (1) (3) (1) (1)-b1899632c7a6d225f5f5f17830e6b9ae.png)

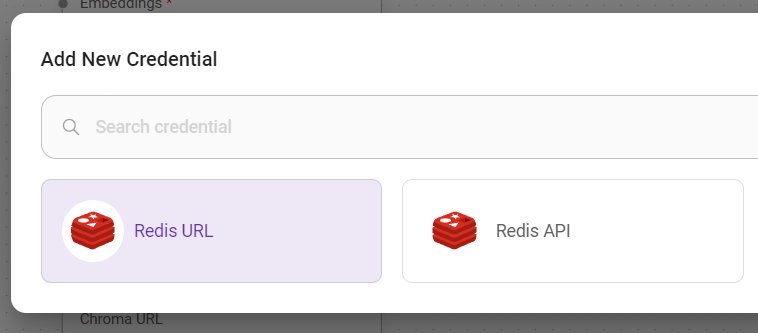

- Select type of Redis Credential. Choose Redis API if you have username and password, otherwise Redis URL:
 (1) (1) (2)-120ed748b7decd5672a0ae1c73e0d86e.png)

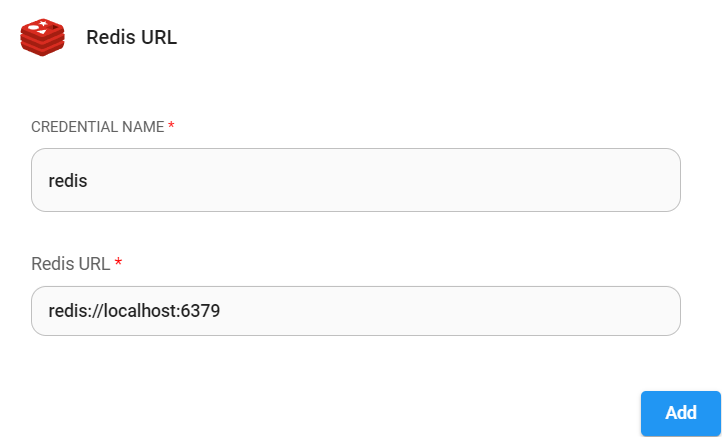

- Fill in the url:
 (1) (1) (1) (2) (1)-0e696b0b71deb1926fbf242c6ec9aa4a.png)

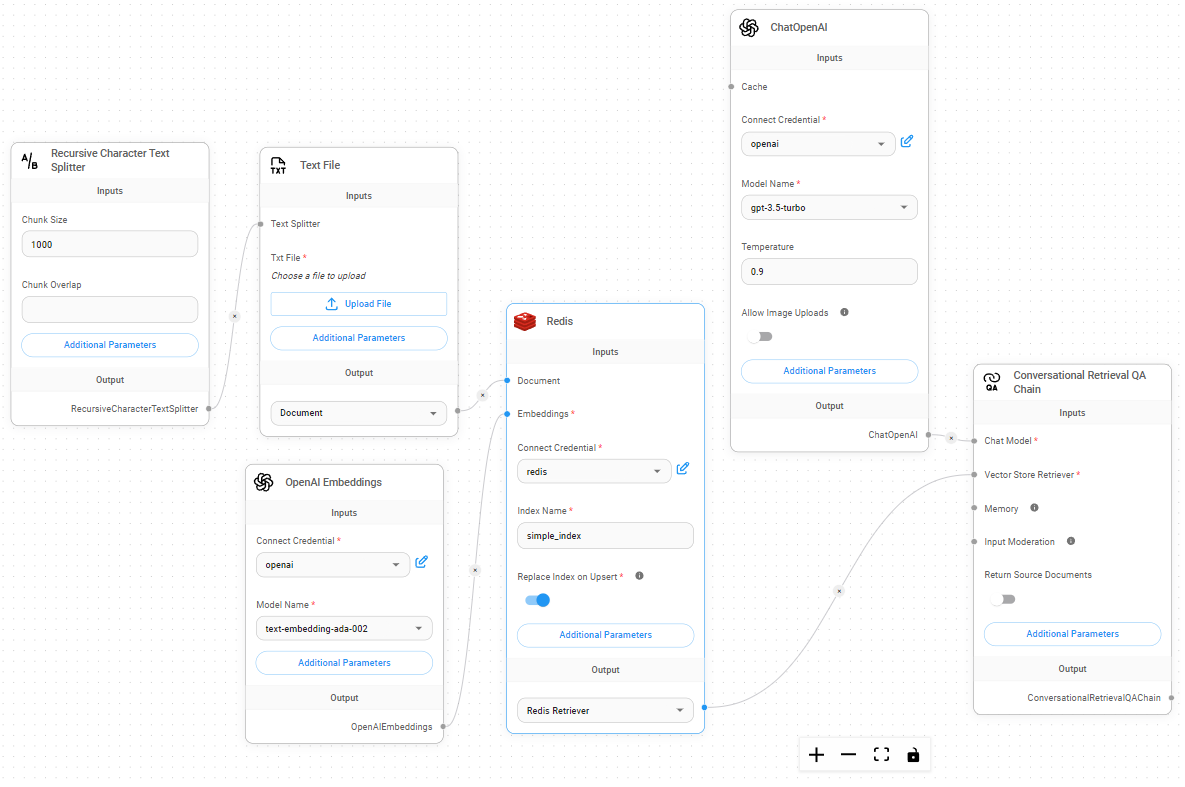

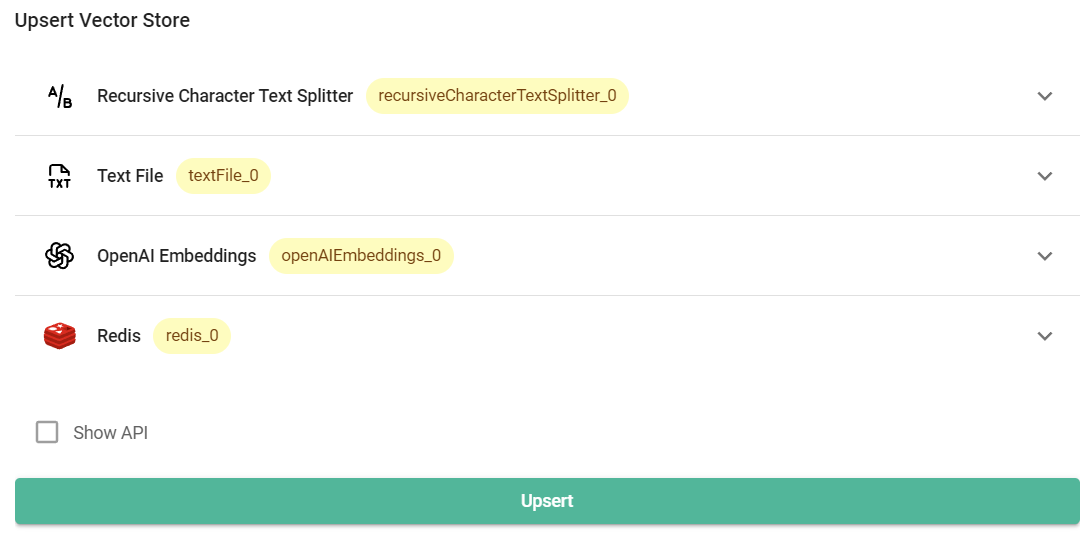

- Now you can start upserting data with Redis:
 (1) (1) (1) (1) (1) (1) (1) (1) (1)-33df5967dba7bb7361307ed7fb5878ee.png)
 (2) (1)-2736c02755bd4c26e566d0da67bd5307.png)

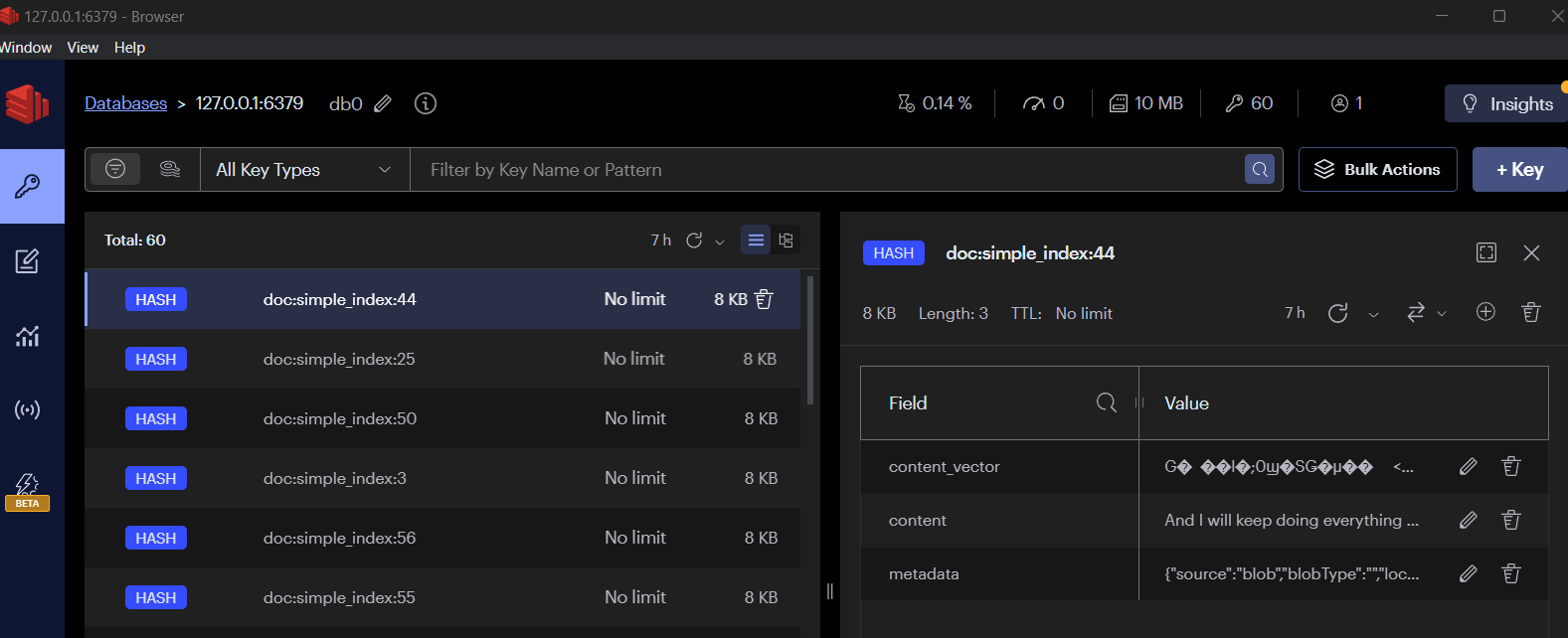

- Navigate to Redis Insight portal, and to your database, you will be able to see all the data that has been upserted:
-0b31bfd1282e56087b62ac120fe5ad0d.png)
