Unstructured Folder Loader

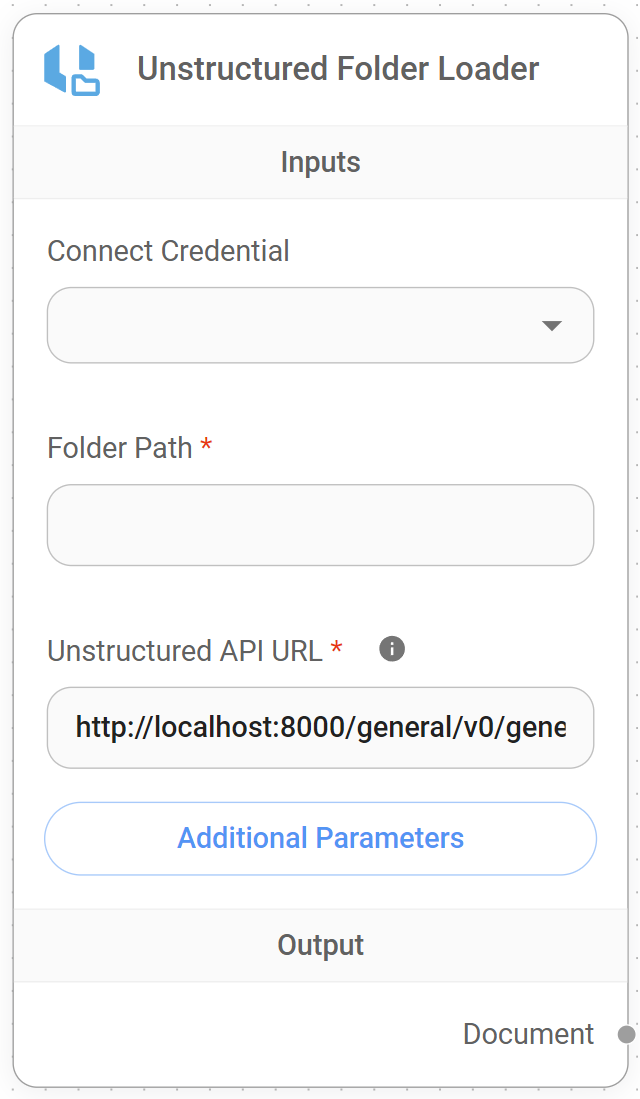

<p>Unstructured Folder Loader Node</p>

Unstructured Folder Loader Node

The Unstructured Folder Loader uses Unstructured.io to load and process multiple documents from a folder. It provides advanced document parsing capabilities with extensive configuration options for OCR, chunking, and metadata extraction.

warning

Currently doesn't support .png and .heic files until unstructured is updated.

Features​

  • Batch processing of multiple documents
  • Multiple processing strategies
  • OCR support with 15+ languages
  • Flexible chunking strategies
  • Table structure inference
  • XML processing options
  • Page break handling
  • Coordinate extraction
  • Metadata customization

Configuration​

API Setup​

  • Default API URL: http://localhost:8000/general/v0/general
  • Can be configured via environment variable: UNSTRUCTURED_API_URL
  • Optional API key authentication

Parameters​

Required Parameters​

  • Folder Path: Path to the folder containing documents to process

Optional Parameters​

Basic Configuration​

  • Unstructured API URL: API endpoint (default: http://localhost:8000/general/v0/general)
  • Strategy: Processing strategy (default: auto)
    • hi_res: High resolution processing
    • fast: Quick processing
    • ocr_only: OCR-focused processing
    • auto: Automatic selection
  • Encoding: Document encoding (default: utf-8)

OCR Options​

  • OCR Languages: Multiple language support including:
    • English (eng)
    • Spanish (spa)
    • Mandarin Chinese (cmn)
    • Hindi (hin)
    • Arabic (ara)
    • Portuguese (por)
    • Bengali (ben)
    • Russian (rus)
    • Japanese (jpn)
    • And more...

Processing Options​

  • Skip Infer Table Types: File types to skip table extraction (default: ["pdf", "jpg", "png"])
  • Hi-Res Model Name: Model selection for hi_res strategy (default: detectron2_onnx)
    • chipper: Unstructured's in-house VDU model
    • detectron2_onnx: Facebook AI's fast object detection
    • yolox: Single-stage real-time detector
    • yolox_quantized: Optimized YOLOX version
  • Coordinates: Extract element coordinates (default: false)
  • Include Page Breaks: Include page break elements
  • XML Keep Tags: Preserve XML tags
  • Multi-Page Sections: Handle multi-page sections

Text Chunking Options​

  • Chunking Strategy: Text chunking method (default: by_title)
    • None: No chunking
    • by_title: Chunk by document titles
  • Combine Under N Chars: Minimum chunk size
  • New After N Chars: Soft maximum chunk size
  • Max Characters: Hard maximum chunk size (default: 500)

Metadata Options​

  • Source ID Key: Key for document source identification (default: source)
  • Additional Metadata: Custom metadata as JSON
  • Omit Metadata Keys: Keys to exclude from metadata

Supported File Types​

  • Documents: .doc, .docx, .odt, .ppt, .pptx, .pdf
  • Spreadsheets: .xls, .xlsx
  • Text: .txt, .text, .md, .rtf
  • Web: .html, .htm
  • Email: .eml, .msg
  • Images: .jpg, .jpeg (Note: .png and .heic currently unsupported)

Output Structure​

Document Format​

Each processed document includes:

  • pageContent: Extracted text content
  • metadata:
    • source: Document source identifier
    • Additional metadata from processing
    • Custom metadata (if specified)

Usage Examples​

Basic Configuration​

{
  "folderPath": "/path/to/documents",
  "strategy": "auto",
  "encoding": "utf-8"
}

Advanced Processing​

{
  "folderPath": "/path/to/documents",
  "strategy": "hi_res",
  "hiResModelName": "detectron2_onnx",
  "ocrLanguages": ["eng", "spa", "fra"],
  "chunkingStrategy": "by_title",
  "maxCharacters": 500,
  "coordinates": true,
  "metadata": {
    "source": "company_docs",
    "department": "legal"
  }
}

Best Practices​

  1. Choose appropriate strategy based on document quality and processing needs
  2. Configure OCR languages based on document content
  3. Adjust chunking parameters for optimal text segmentation
  4. Use appropriate hi-res model for your use case
  5. Consider memory usage when processing large folders
  6. Monitor API usage and response times
  7. Handle potential API errors in your workflow

Notes​

  • Process multiple documents in batch
  • Supports various file formats
  • Memory-efficient processing
  • Automatic metadata handling
  • Flexible output formats
  • Error handling for API responses
  • Configurable processing options
info

This section is a work in progress. We appreciate any help you can provide in completing this section. Please check our Contribution Guide to get started.
